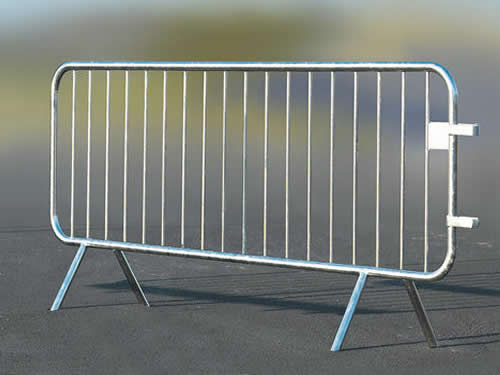

Hot dip galvanized Crowd Control Barrier
Crowd control barrier has been designed with all kinds of feet, flat feet, claw feet and bridge feet.
They provide a quick and efficient barrier perfect for all situations where you need to divert or keep the public away from a designated area.
| Specification | Normal size |
| Material | Low carbon steel tube |
| Panel Size | 2.0 x 1.2m,2.1 x 1.1m,2.4x1.1m, 2.9x1.17m(or customized) |
| Frame tube | Round tube: 25mm, 32mm, 42mm etc. Square tube: 20*20mm, 25*25mm etc. |
| Infill tube | Round tube: 20mm, 25mm, 32mmetc. Square tube: 20*20mm, 25*25mm etc. |
| Spacing | 60mm, 100mm,190mm & 200mm |
| Surface treatment | ---Hot-dipped galvanized ---Black + spray paint/ Powder coated --- Galvanized + spray paint/ Powder coated |
| Feet/base | --- welded flat feet --- Detached flat feet --- welded Bridge Feet("U" base foot) --- Detached Bridge Feet("U" base foot) --- welded Claw feet (Cross foot ) |
| Different specifications are available according to customers' special inquiry or detailed drawings. | |
1.Main markets of Crowd Control Barrier
Australia, New Zealand, Asia countries, etc
2.Feature of Crowd Control Barrier
-----The crossover points of crowd control barriers are 360 degrees welded complying with advanced welding technology. Hand welded with high strength
-----Interlocking design
Panels with single or double hooks are available as your request.
The crowd control barriers can be attached to each other in a line or take corners of up to 90 degrees. Once the barriers interlocked, it is not easy to topple them over.
-----Portable frame for easy handling
Its portable character makes the panels easier to handle, install and transport.
-----Hot dipped galvanized for rust resistance
We select the best galvanization way for the super rust and corrosion resistance .After galvanization, they are more anti-weather and durable with a longer service time.
---- Also used powder coating with various colors
The Crowd Control Barrier can be powder coated in any color to fit your scheme and provide aesthetic effects.

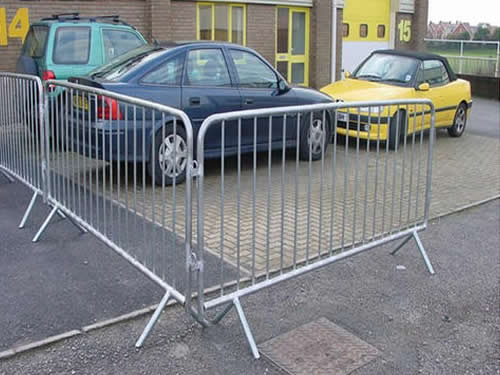

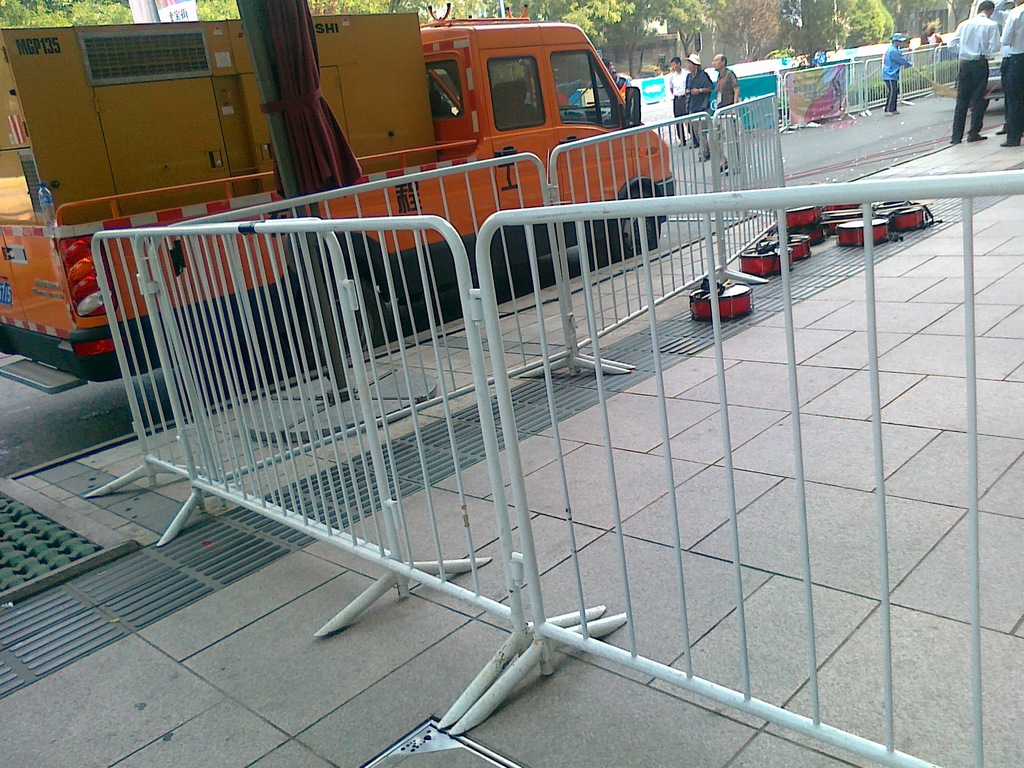

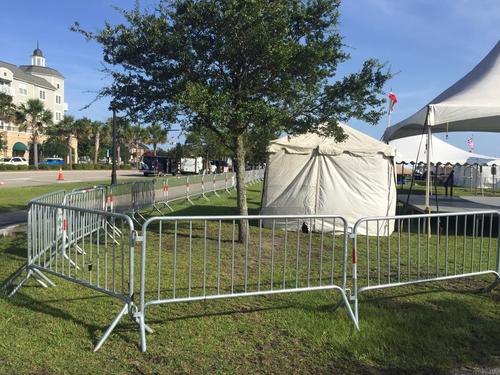

3. Application
-----Direct pedestrian traffic.
-----Keep the crowd in a designated area.
-----Protect cordoning off restricted areas.
-----Designate space for lines.
-----Control large gatherings.
-----Deter motorists and pedestrian entering.
-----Create allocated walkways.
----- Also can be used at construction sites and road works.
