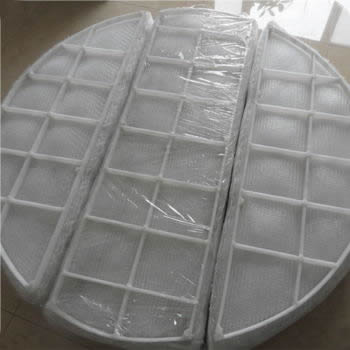

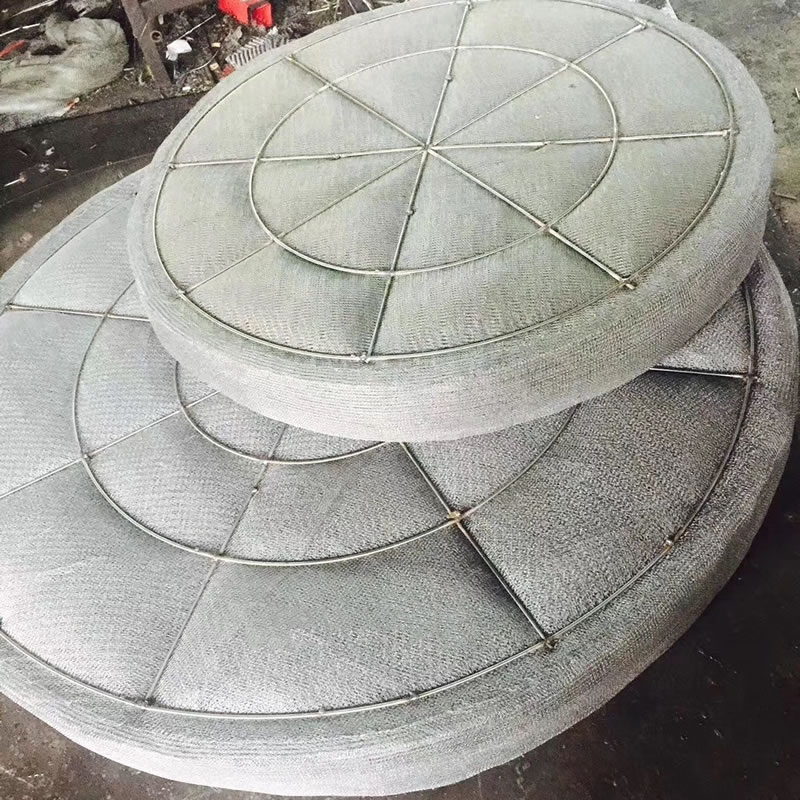

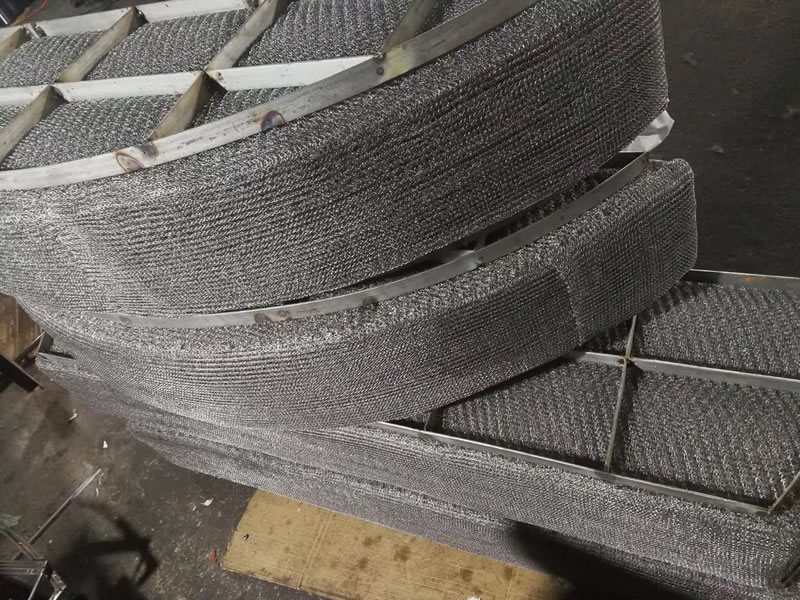

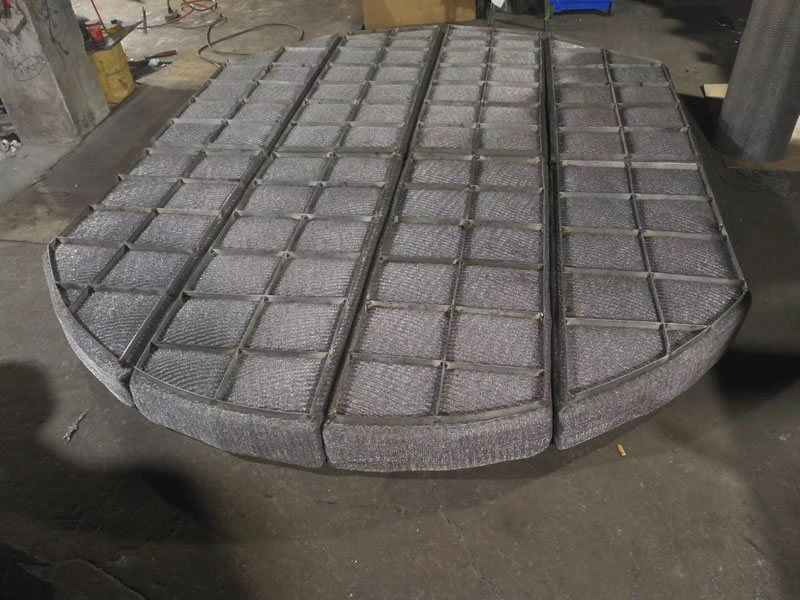

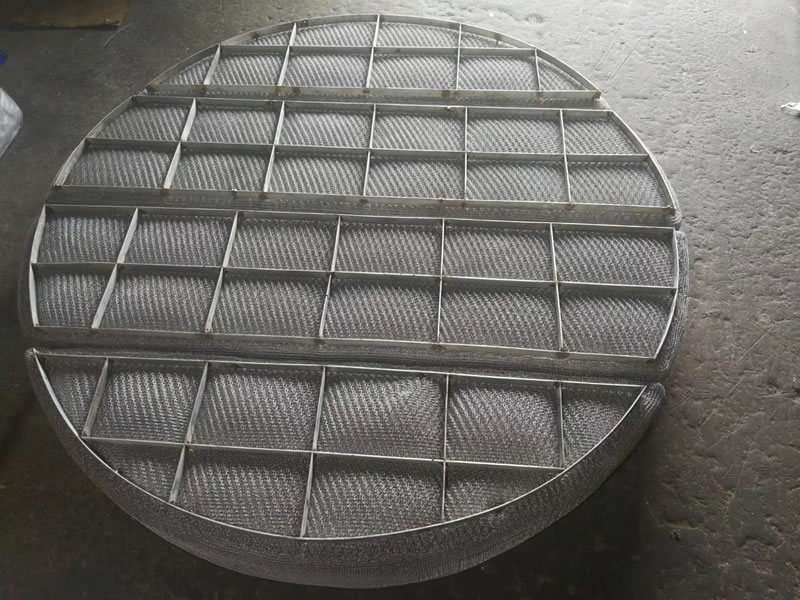

Knitted Wire Mesh/Demister Pad

Knitted wire mesh, also referred to as Gas-Liquid Filter Mesh, is manufactured using the highest quality stainless steel.

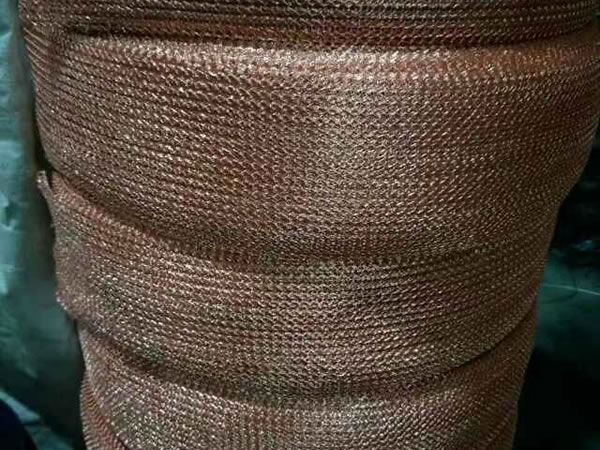

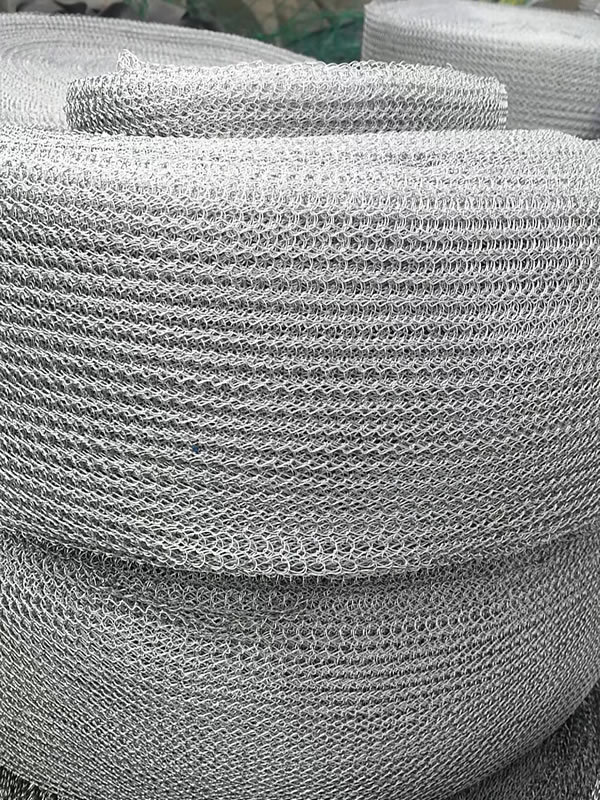

Knitted mesh is made of either crochet or knitting of various wire materials including stainless steel, copper, synthetic fiber and other materials.

Knitted wire mesh products are applied to those applications including cryogenic, high temperature, corrosive atmosphere, heat conductive, high usage, or special service applications.

Wire diameter: 0.10mm-0.55mm

Material of Knitted Wire Mesh: Aluminum wire,stainless steel wire, galvanized wire,fibre wire,plastic wire,PP,PC,PE,PVC,etc.

The common width of Knitted Wire Mesh: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400,500 mm, 600mm, etc.

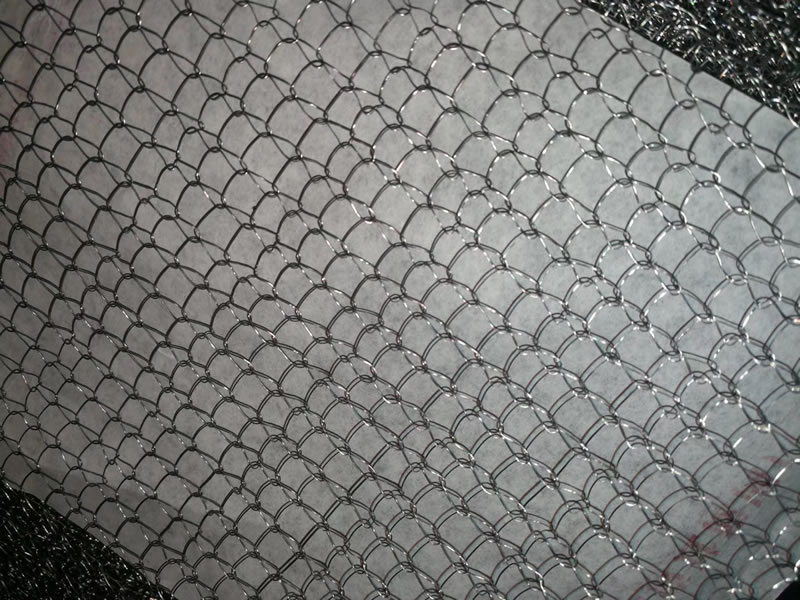

Hole size: (2x3mm) to (4x5mm) to the (12x6mm) also according to customer requirements on the hole size fine-tuning. The cutout form of the large hole and the orifice cross-arranged (the size of the holes in the longitudinal direction is the same,width is different).

Process: Crochet weaving.

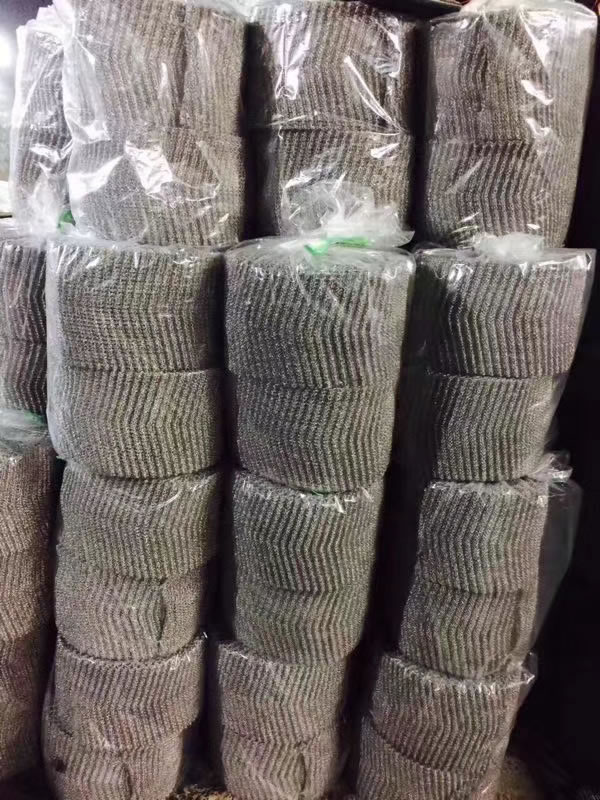

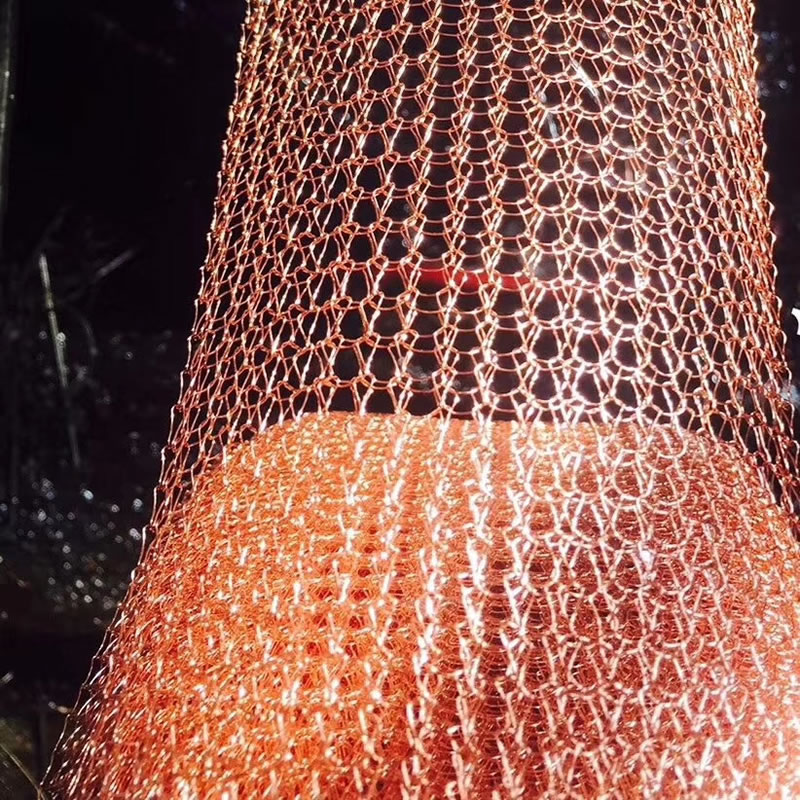

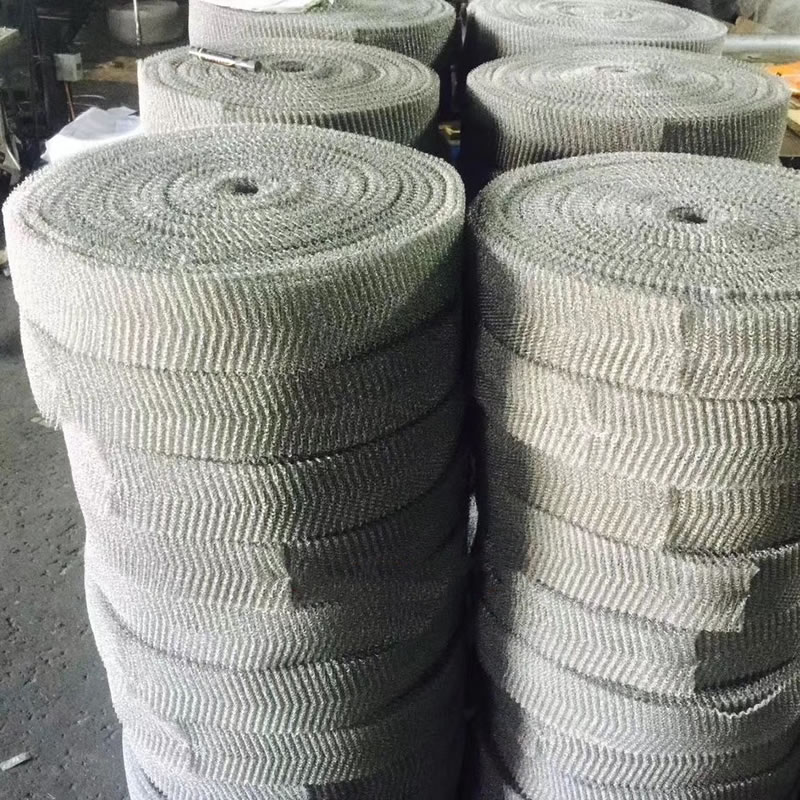

Weaving: the knit fabric hangs up a plait, knitted into a tubular form, and then flattened into continuous lengths and rolled up for packaging.

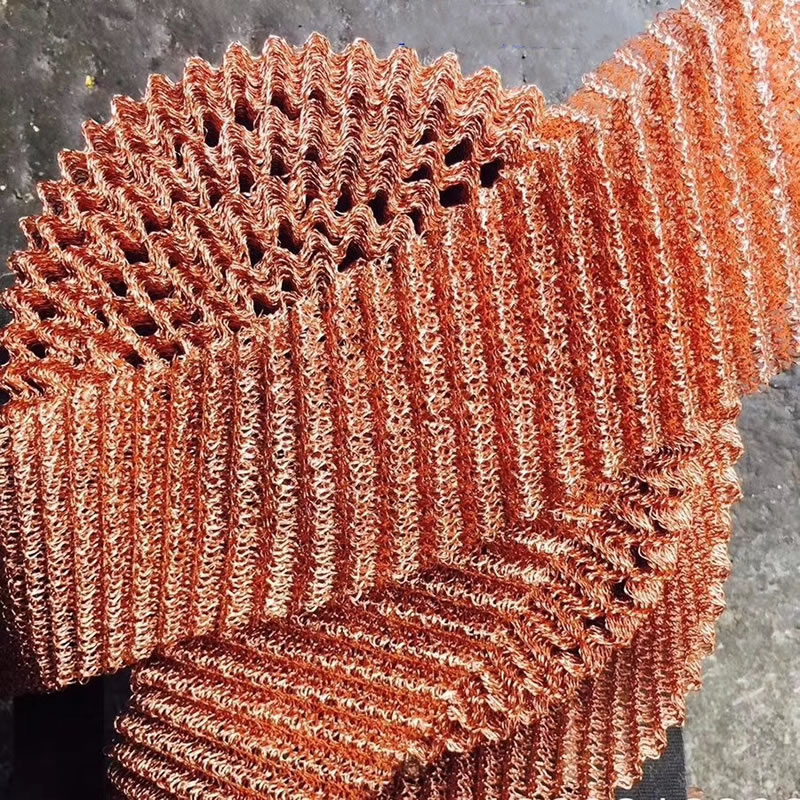

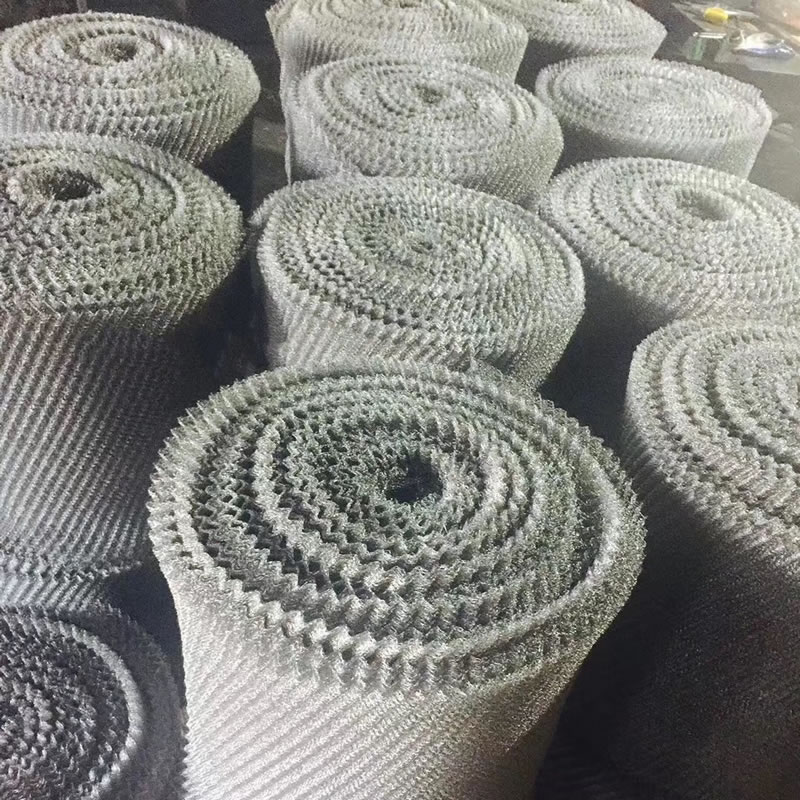

The surface of the Knitted Wire Mesh: the flat-type mesh surface and pressed into a corrugated bellows-type network surface (the width of the corrugations and the depth of the different specifications)

Application: It can used as filter mesh for gas and liquid in filtering and deleting the particle mixture in foam, liquid and air, by way of distillation, absorbing, evaporating and filtering process. So it used in petroleum, chemicals, metallurgy, machine, pharmaceuticals, automobile and environmental protection filed.
