Materials: Stainless steel wire
Weaving: Dutch plain weave, Dutch twilled weave
Features:
Fine workmanship, it have the characteristics of smooth surface, high hardness, uninterrupted, long time no deformation, high temperature resistance, corrosion resistance, excellent filtering performance, easy installation etc. Fine wire cloth mainly for filtration, sieving, screening and various industrial separation.
Applications:
Widely used in aerospace,petroleum,chemical,chemical fiber,machinery,plastic products,research and plastic melt filter,molding machine belt type filter conveyor industries.

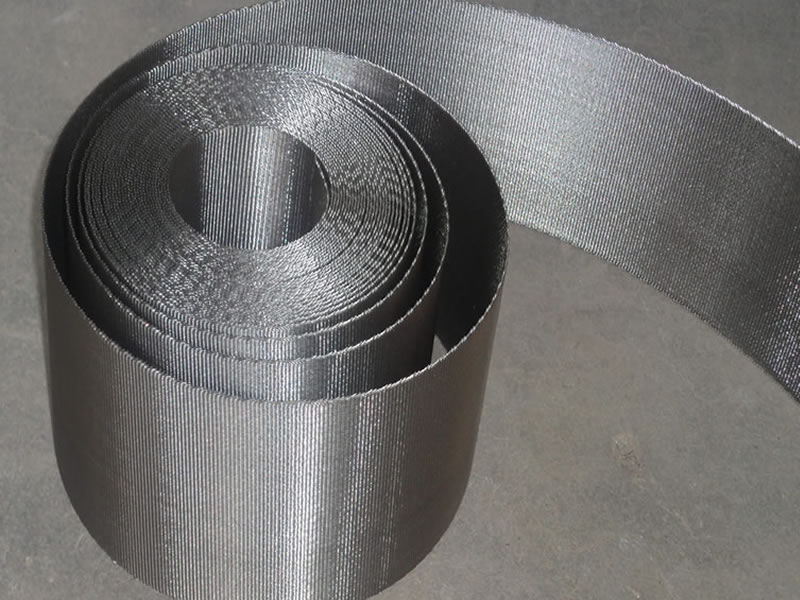

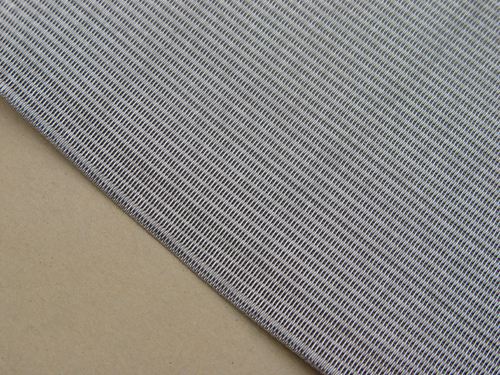

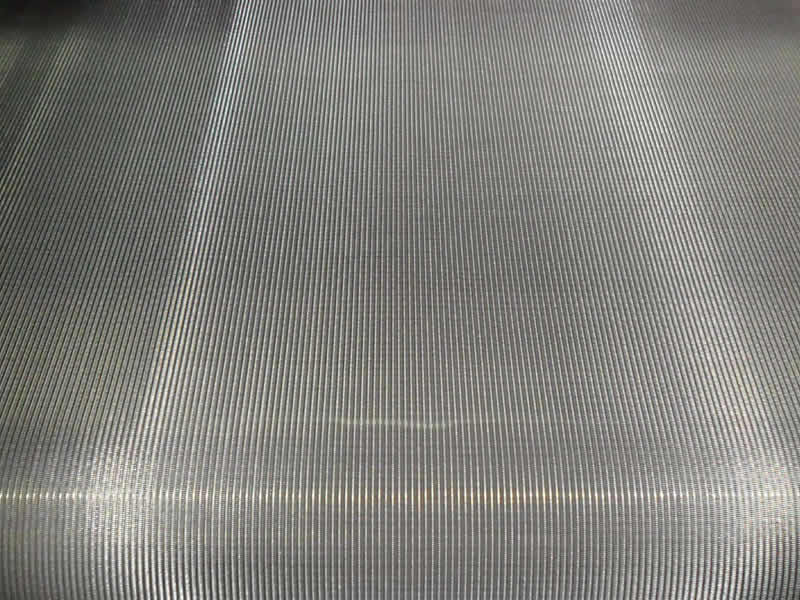

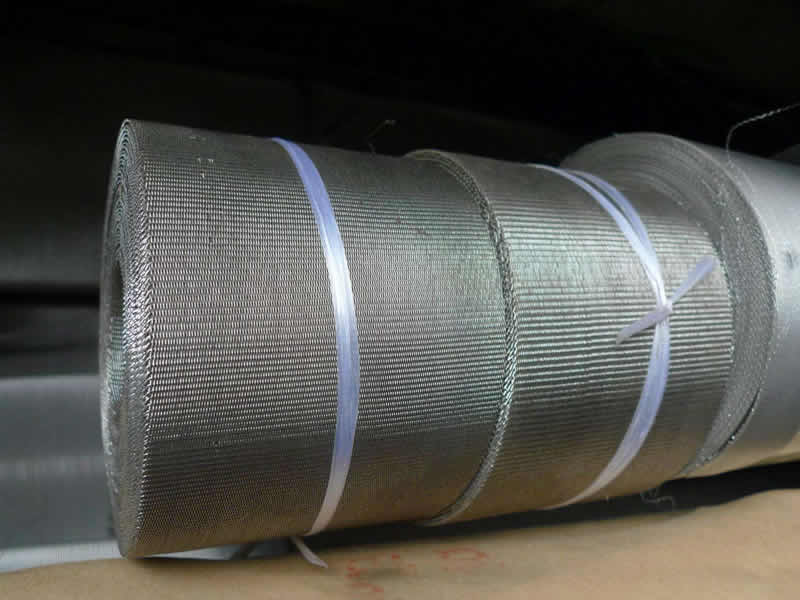

Stainless Steel Dutch Wire Mesh
| Mesh | Wire Dia. (MM) | Material (AISI) |
| 12mesh x 64mesh | 0.58 x 0.40 | 304 or 316 |
| 24mesh x 110mesh | 0.36 x 0.25 | 304 or 316 |
| 14mesh x 88mesh | 0.50 x 0.33 | 304 or 316 |
| 30mesh x 150mesh | 0.23 x 0.18 | 304 or 316 |
| 40mesh x 200mesh | 0.18 x 0.13 | 304 or 316 |
| 50mesh x 250mesh | 0.14 x 0.11 | 304 or 316 |
| 80mesh x 700mesh | 0.10 x 0.08 | 304 or 316 |
| 165mesh x 800mesh | 0.071 x 0.040 | 304 or 316 |
| 165mesh x 1400mesh | 0.06 x 0.04 | 304 or 316 |
| 200mesh x 1800mesh | 0.05 x 0.032 | 304 or 316 |
| 825mesh x 2300mesh | 0.035 x 0.025 | 316L |
| 400mesh x 2800mesh | 0.030 x 0.02 | 316L |
| Specification of Stainless Steel Reverse Dutch Weave Wire Mesh | |||
| Mesh/inch | Wire Dia.(mm) | Width(mm) | Length/Roll(m) |
| 72/15 | 0.45/0.55 | 97---400 | 10/20 |
| 120/15 | 0.35/0.45 | 97---400 | 10/20 |
| 132/17 | 0.32/0.45 | 97---400 | 10/20 |
| 150/17 | 0.3/0.45 | 97---400 | 10/20 |
| 152/24 | 0.27/04 | 97---400 | 10/20 |
| 170/17 | 0.27/0.45 | 97---400 | 10/20 |
| 180/18 | 0.27/0.45 | 97---400 | 10/20 |
| 200/40 | 0.17/0.27 | 97---400 | 10/20 |
| 260/40 | 0.15/0.25 | 97---400 | 10/20 |
